Liquid lens products and actuation solutions for Compact Camera Modules

Capture the world in stunning detail with our cutting-edge liquid lens core and actuated lens solutions. Designed for use in devices where small size, fast response and low power operation are critical, our solutions are proven to meet the exacting standards of high-end mobile-phone photography and their versatility means they can deliver exceptional performance in many other applications.

Optotune CCM advantages

Large tuning ranges (enabling Super-Macro Focusing <5cm)
Option of simultaneous AF & OIS using a single lens
High-resolution imaging thanks to wavefront errors <0.1λ
Miniaturization without image quality compromise (large optical aperture vs. compact footprint)
Low-force activation (Low-power consumption for associated actuator)
Proven stable, repeatable and reliable in mobile applications
In-house experience in full actuated design solutions

Working principle

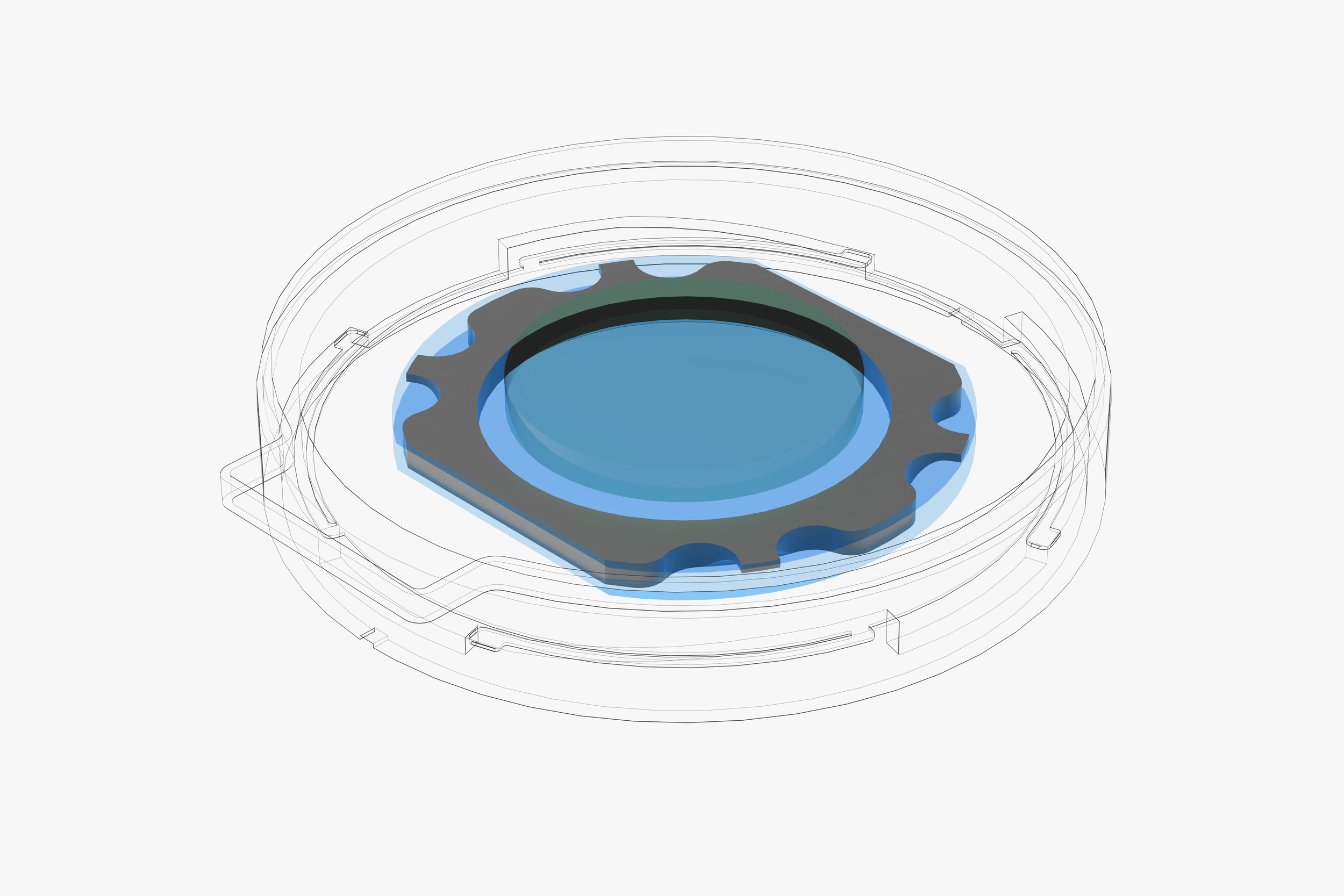

Employing similar fundamental principles as the original Focus Tunable Lens range (accurate displacement of optical grade liquid and deflection of elastic membranes), we have optimized the design of our CCM range cores for simplicity, size and photographic optical quality. Using a glass pusher plate to displace the optical fluid contained within a circular, membrane-enclosed container, the components can achieve high-speed tuning from strongly concave to strongly convex.

Thanks to the freedom of motion of the core components, the lenses can be used to provide either focusing only, or focusing with simultaneous tilt of the optical path, enabling for an extremely space efficient AF + OIS (Optical Image Stabilization) solution.

Example compact liquid lens cores


    Parameter
    Value
    Unit
    Note


    Focal power tuning range
    -20 to +20
    dpt
    Customizable


    Wavelength range
    420 to 700
    nm
    Customizable


    Refractive index
(@532nm and 25°C)
    1.29 ±0.01
    -
    Also available 1.45


    Abbe number
    90
    -



    Glass refractive index
(@532nm and 25°C)
    1.523
    -
    Customizable


    Transmittance
    98
    %
    With AR surfaces


    Wavefront error @532nm
    < 0.1
    λ RMS
    All lens orientations





    Standard Lens Types


    Dimension

    H0
    H1
    H2
    H3
    Maia 1 (D-cut)
    Maia 2 (D-cut)
    Units
    Custom lenses


    Optical clear aperture (max)
    OCA
    Ø1.26
    Ø1.6
    Ø2.2
    Ø2.9
    Ø3.6
    Ø4.4
    mm
    Several properties of the lens can be customized for specific optical & size needs. Please contact our sales team to discover more.


    Glass diameter
    GD
    Ø1.46
    Ø1.8
    Ø2.4
    Ø3.1
    Ø3.8
    Ø4.55
    mm


    Inner diameter
    ID
    Ø2.0
    Ø2.4
    Ø3.0
    Ø3.6
    Ø4.4
    Ø5.1
    mm


    Outer diameter
    OD
    Ø2.95
    Ø3.6
    Ø4.2
    Ø4.9
    Ø5.3/6.1
    Ø5.8/6.1
    mm


    Thickness
    T
    0.47-0.66
    0.56-0.66
    0.56-0.66
    0.76
    0.79
    0.8
    mm


Actuation & Integration Solutions

Beyond designing and manufacturing high-quality “passive” liquid lens cores, Optotune offers additional products and services to ensure the unique demands of various applications can be met.

Stand-alone actuated liquid-lens products
Reference designs for optical and actuation schemes
Partnerships with industry leaders in actuation and compact camera module manufacturing for full camera solutions

Example 1: Optotune electrically actuated lens

Plug & Play, 3.1mm aperture Tunable Lens solution with Maia core

Fully designed & manufactured by Optotune

Example 2: Miniature Wide-Angle Camera

8MP,120° DFOV Camera Module with H0 core
5P 1L (Liquid Lens) barrel with L in position 2
Co-design and manufactured with top tier CM

Example 3: Folded-Path Tele AF+OIS Module

3-in-1 AF-Macro-OIS enabler using Maia2 core coupled with moving prism
Optotune reference design shared with mobile ecosystem partners for high volume production
In-house modules possible in lower volumes

Example 4: Upright AF+OIS Camera Module

H3 core in “on-top” position with multi axis custom VCM
Optotune reference design shared with ecosystem partners

Super-macro proven in Mobile Devices

Xiaomi Mi-Mix Release

Optotune compact liquid lenses were designed into Xiaomi’s Mi-Mix Fold and Mi-Mix Fold 2 phones, to offer thier customers lightning-fast AF and allow them to discover the fascinating possibilties of Macro photography.

Mi MIX introduction of liquid lenses

AF+Macro+OIS in folded camera

Tecno announced liquid lens tele

As shown in the example 3 above, Tecno’s folded telephoto lens uses Optotune’s liquid lens technology to offer fast autofocus, 5cm macro and OIS in a compact module.

Tecno’s implementation of folded-path tele AF+OIS
