Controllers
Optotune’s products are controlled by current. Off-the-shelf controllers are available that provide the necessary current to the specific product and offer advanced software control options, such as temperature compensation and response time optimization.
Controllers range from compact portables, R&D development kits, embedded options, to 24/7 industrial operation solutions.
While Optotune designs and manufactures own controllers, we are happy to partner with electronics experts such as Gardasoft and Scaps to provide optimal control solutions for specific industries. Furthermore, an increasing number of cameras are available, which include liquid lens control, such as the ITALA G.EL series by Opto Engineering.
Not sure which controller to use? Let’s talk - fill the contact form now.
ICC-4C-500
The following table summarizes the main specifications of Optotune's controllers:
| Product |
EL-E-4 / 4i
|
ECC-1C
|
ICC-4C
|
TR-CL180
|
EL-E-OF-A
|
DSD-2-O
|
MR-E-3
|
|---|---|---|---|---|---|---|---|
| Application | Portable systems, R&D | Connect to cameras or embedded systems | Industrial 24/7 operation | Industrial 24/7 operation | R&D, Industrial and medical lasers | R&D, Industrial and medical lasers | R&D, Industrial 24/7 operation |
| Current range (mA) | -290 to +290 | -300 to +300 | -500 to +500 -2000 to +2000 |
-400 to +400 | 0 to +300 | 0 to +300 | -1000 to +1000 |
| Interfaces | USB, UART, Analog 0-5V | UART, I2C, Analog 0-10V, GPIO | USB, Ethernet, UART, I2C, Analog 0-10V | GigE, RS232, Analog 0-10V | Analog 0-5V (ADC resolution 16 bit) | USC3 /XY2-100 scanner cards, USB | USB, UART, SPI, Analog 0-10V |
| SDKs | C#, Python, LabVIEW | C#, Python | C#, C++, Python | Triniti SDK, C#, C++, VB | - | SCAPS DSD-2 GUI | C#, Python |
| Supply voltage | 5V | 5-24V | 24-48V | 24V | 24V | 24V | 24-48V |
| Connector | Hirose or FPC | Hirose | Hirose Extension kits |
Hirose | - | - | - |
| Manufacturer | Optotune | Optotune | Optotune | Gardasoft | Optotune | Scaps | Optotune |
| Channels | 1 | 1 | 4 | 1 | 1 | 1 | 2 |
All Optotune controllers are CE, RoHS and REACH compliant
The following table summarizes Optotune's products compatibility with each controller:
| Product | EL-E-4 | EL-E-4i | ECC-1C | ICC-4C | TR-CL180 | EL-E-OF-A | DSD-2-O | MR-E-3 OEM |
|---|---|---|---|---|---|---|---|---|
| EL-3-10 (FPC) | ◦◦◦ | ◦◦◦◦ | ◦ | |||||
| EL-12-30-TC | ◦◦◦ | ◦◦◦◦ | ◦ | |||||
| EL-16-40-TC (FPC) | • | ◦◦◦◦ | ◦ | |||||
| EL-16-40-TC (Hirose) | • | • | • | • | ||||
| ELM-F (FPC) | • | ◦◦◦◦ | ◦ | |||||
| ELM-F (Hirose) | • | • | • | • | ||||
| ELM-T (Hirose) | • | • | • | • | ||||
| EL-10-42-OF | • | • | ||||||
| MR-15-30 | • | |||||||
| MR-10-30 | • | |||||||
| XPR | ◦◦ | |||||||
| BSW-20 | ◦◦ |
• Fully compatible ◦ Requires ICC-4C-500 Extension KIT ◦◦ Requires ICC-4C-2000 Extension KIT ◦◦◦ Current mode available only ◦◦◦◦ ECC-1C flex cable connection
Control your liquid lens directly from the camera
A great option for machine vision users is to connect liquid lenses directly to the camera and control it through its SDK or via GenICAM. This can be done either by selecting a camera model that supports Optotune’s embedded controller ECC-1C (e.g. from Basler) or by selecting a camera with build in liquid lens controller such as the ITALA G.EL series by Opto Engineering.
Products: controllers
Lens driver 4 / 4i
ECC-1C
ICC-4C

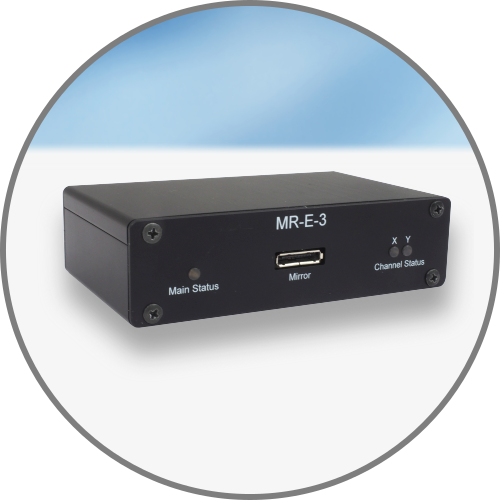

MR-E-3
EL-E-OF-A

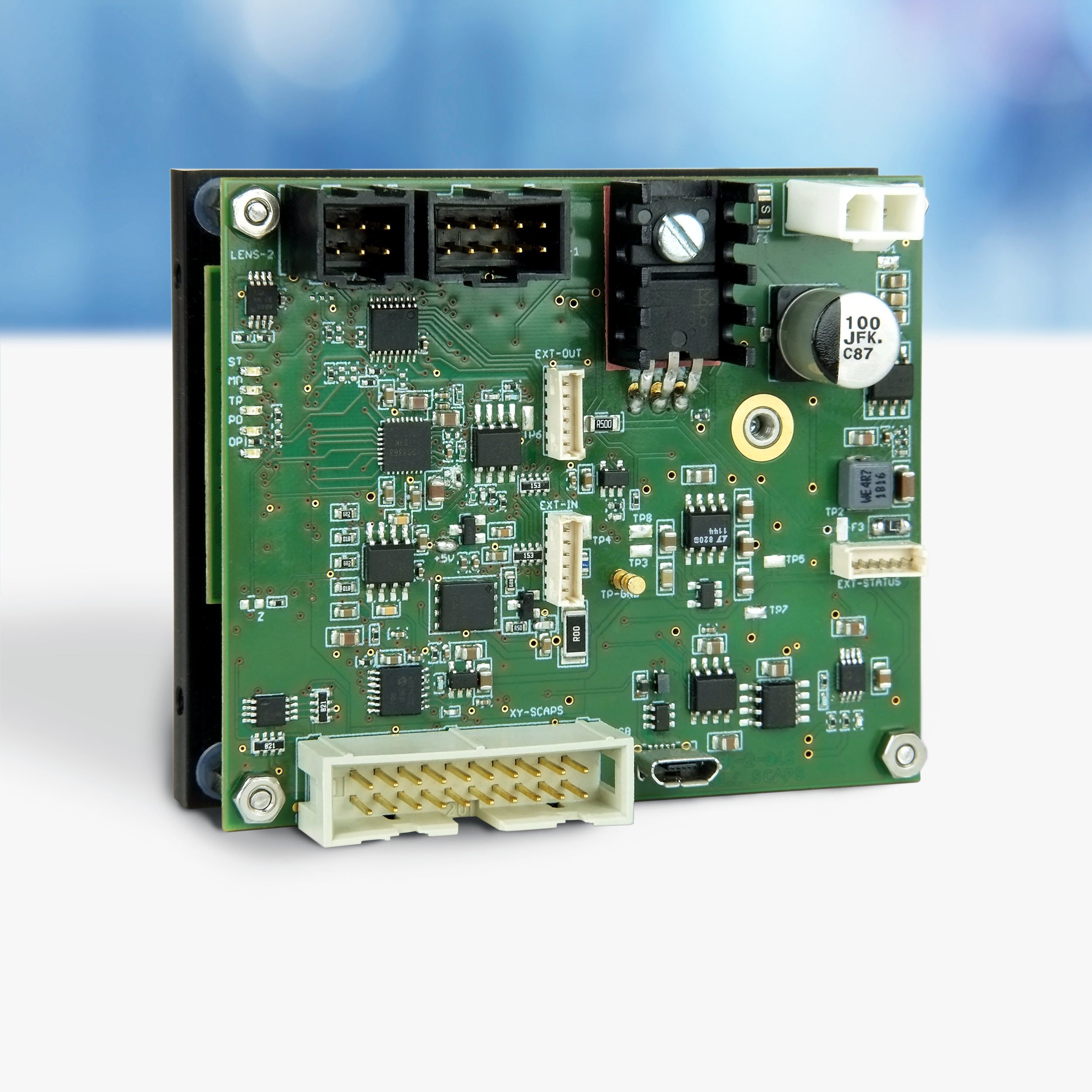

SCAPS DSD-2-O
TR-CL180
