ICC-4C controllers
Optotune ICC-4C four channels controllers (ICC-4C-500 and ICC-4C-2000) enable the control of up to 4 Optotune devises simultaneously.
Main features:
USB, Ethernet (with PoE+), I2C, UART and 0-10 V Analog (16 bit) communication interfaces
Signal generator (sinusoidal, rectangular, triangular, sawtooth, pulse, staircase)
Trigger IN and Trigger OUT options
Simple mode commands serial protocol
Industrial 24/7 operation
Optotune Cockpit Software for Windows 10 (via USB or Ethernet)
Software SDKs for Python and C#
The controllers are RoHS, REACH and CE certified.
ICC-4C-500 controller
The controller is compatible with Optotune’s liquid lenses EL-16-40, EL-10-30 and EL-12-30 series.
It is the ideal choice for machine vision customers who need a robust, industrial controller for demanding 24/7 operation.
4 independent channels (+/-500 mA per channel)
I2C sensor read-out e.g. for temperature compensation ("Focal Power Mode")
ICC-4C-2000 controller
The controller is compatible with Optotune’s XPRs, FMR-20, BSW-20 and several Optotune prototypes that require high current.
4 independent channels (+/-2A per channel)

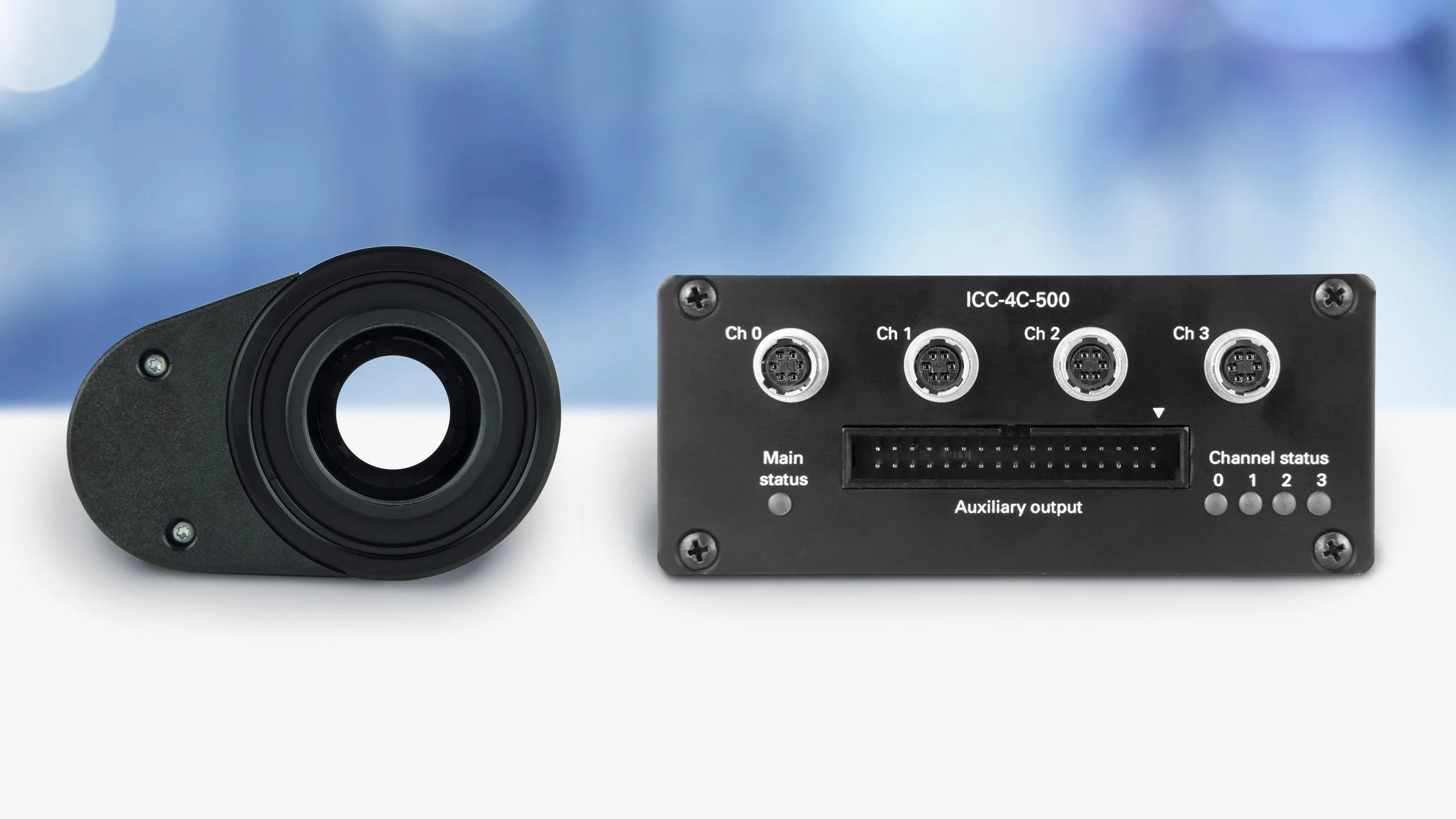

Liquid Lens Control with ICC-4C and ECC-1C controllers
