Mirror controller MR-E-3
The MR-E-3 controller is the ideal solution for driving the MR-series 2D fast steering mirrors. As a development kit, it consists of a base unit (with housing) and an integrated mirror head unit with mirror and proxy board. The development kit is recommended for testing and proof of concept work. The boards without housing are available as OEM version for integration with system electronics.
MR-E-3 Full development kit
MR-E-3 Mirror head unit silver
The controller is compatible only with mirrors produced by Optotune Switzerland AG and allows various operation modes. The MR-E-3 can be controlled from a host PC via the Optotune Cockpit graphical user interface. In addition, the controller offers the following communication interfaces:
USB, UART
SPI, I2C
Analog input (0-10 V)
Software SDKs for Python and C# are available.
The controller is RoHS, REACH and CE certified.
MR-E-3 Base unit
MR-E-3 Mirror head unit gold
Optotune mirror unboxing. 简中字幕

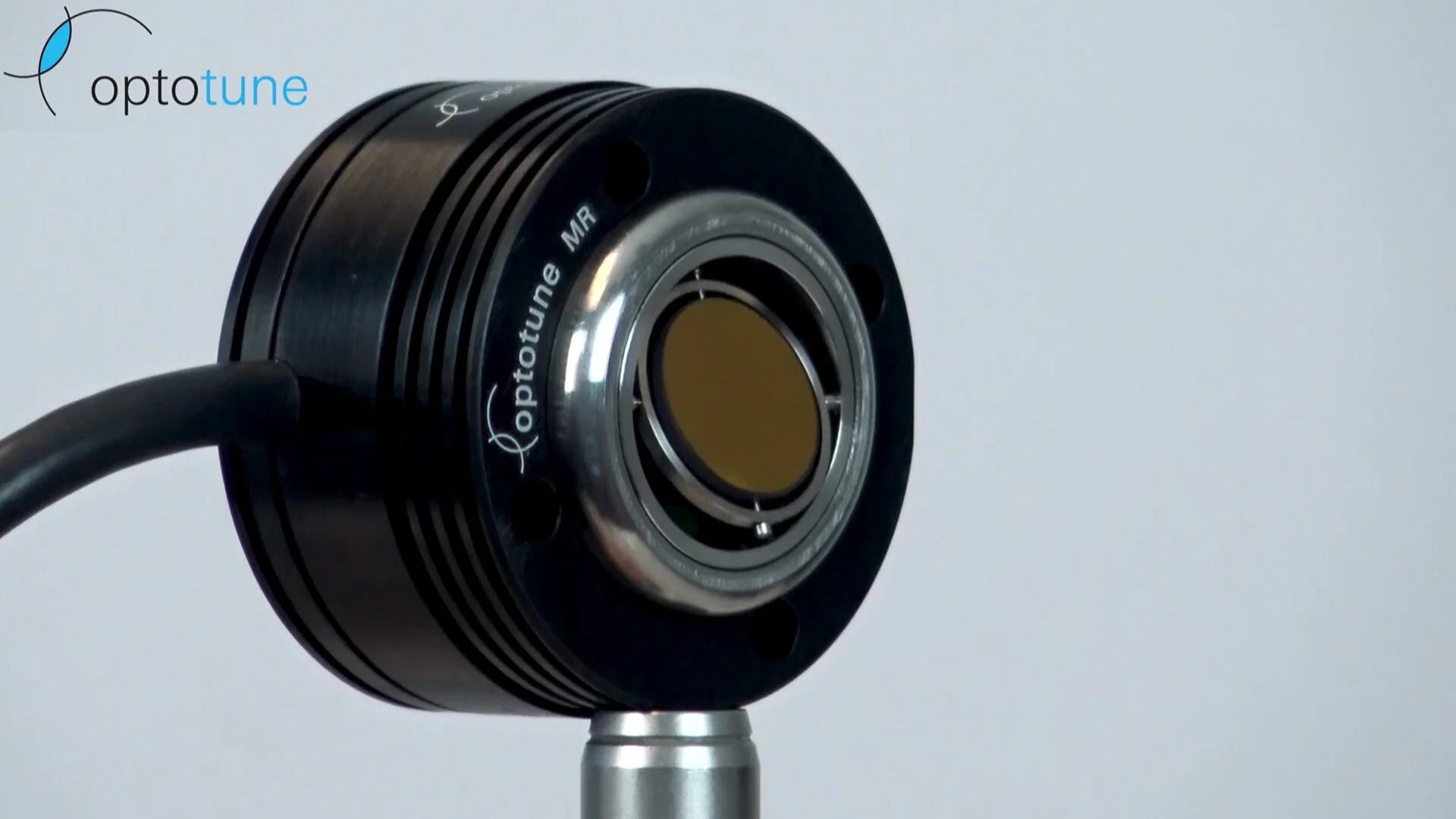

Optotune mirrors and their applications. 二维振镜的介绍与应用
Comparison between development kit and OEM solution:
| Development kit | OEM solution | |
|---|---|---|
| Compatible controller | MR-E-3 Base unit | MR-E-3 OEM version |
| Fast steering mirror version |
MR-E-3 Mirror head unit
(gold, silver, dielectric, custom) |
MR-15-30, MR-10-30,
MR-C-15-30 (custom) |
| Use cases | Evaluation, R&D, plug-and-play | Prototyping, integration into OEM equipment |
| Advantages | Electronics fully protected in housing | Compactness |
| Thermal management | Heat-sinking of mirror and proxy board assured | N/A |
* Software is available for both development kit versions (Optotune Cockpit, C# and Python SDKs)
| Standard controllers* | Components included |
|---|---|
| MR-E-3 Base unit | - Base unit board in protective housing - international power supply - USB cable - mounting bracket for DIN rail |
| MR-E-3 OEM version | - Base unit board, proxy board, base unit to proxy board cable - international power supply - USB cable |
* Optotune fast steering mirror is not included
| MR-E-3 Mirror head units* | Components included |
|---|---|
| MR-E-3 Mirror head unit gold | - Mirror head (contains MR-15-30-G-25x25D fast steering mirror, proxy board and base unit to proxy
board cable) - housing and cover |
| MR-E-3 Mirror head unit silver | - Mirror head (contains MR-15-30-PS-25x25D fast steering mirror, proxy board and base unit to proxy
board cable) - housing and cover |
| MR-E-3 Mirror head unit dielectric | - Mirror head (contains MR-15-30-DVIS-25x25D fast steering mirror, proxy board and base unit to proxy
board cable) - housing and cover |
| MR-E-3 Mirror head unit custom | - Mirror head (contains MR-C-15-30 custom mirror or resonant mirror MR-10-30-G/MR-10-30-PS, proxy board and base unit to proxy board cable)
- housing and cover |
* MR-E-3 Base unit is needed to opearate MR-E-3 Mirror head unit
